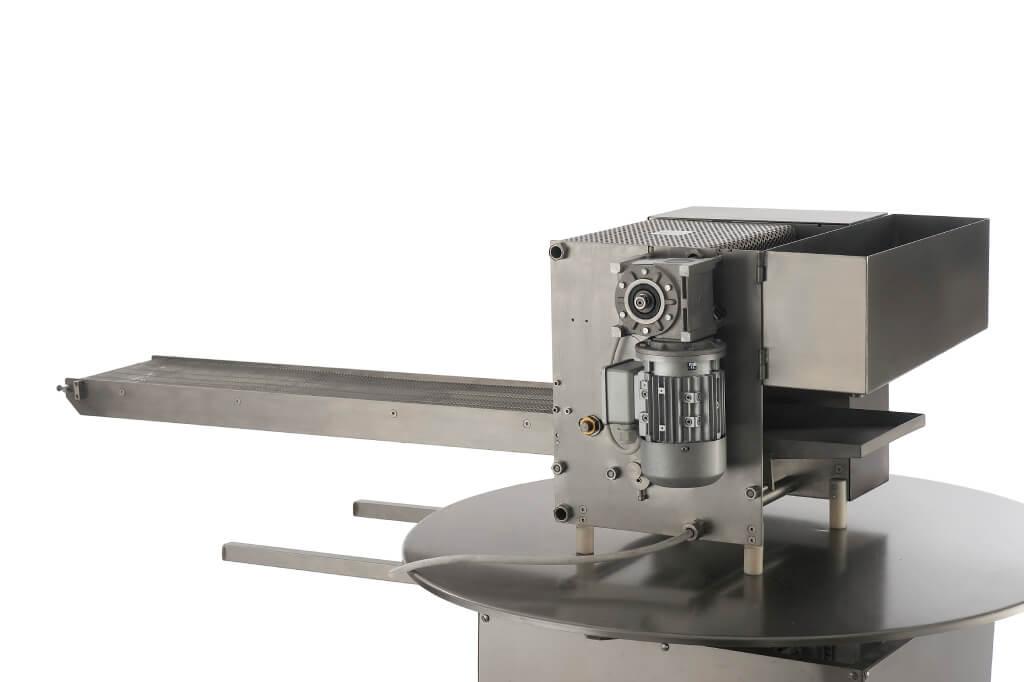

BASIC PANCAKE MACHINE

A device for continuous baking of pancake dough in two forms:

• tapes of any length,
• a rectangle with a width of 200 mm and any length.

The basic pancake machine has the following regulations:

• regulation of baking temperature
• regulation of the length of the cake from 5 cm by one centimetre to infinity and it is possible to adjust the thickness of the fried cake.

TECHNICAL DATA:

• Output:
  • approx. 20 litres of dough/hour
  • approx. 10 sheets 20×20 cm (the length of the sheet is adjustable)
  • approx. 2 m/min. 20 cm wide
• Drive power 0.06 kW
• Heater power 6 kW
• Supply voltage:  ~3×380 V
• Weight: 30 kg
• Dimensions (cm) (W/L/H) 146 x 60 x 49
• Sound level below 68dB A
