Noodle Forming Machine 01HT

The noodle forming machine forms noodle with a shape depending on the used mould.

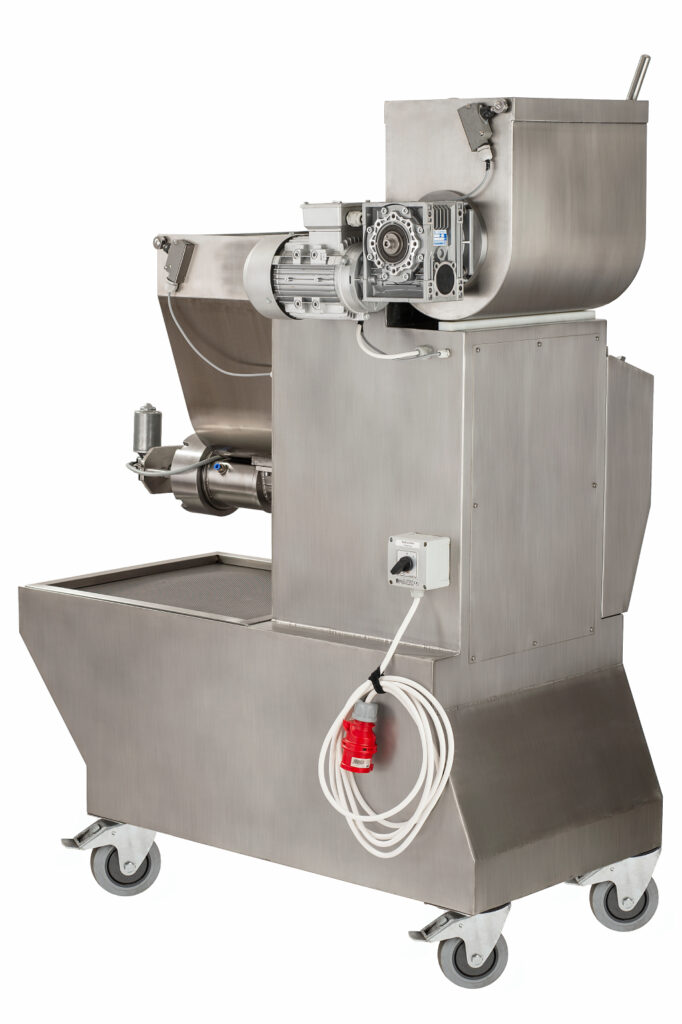

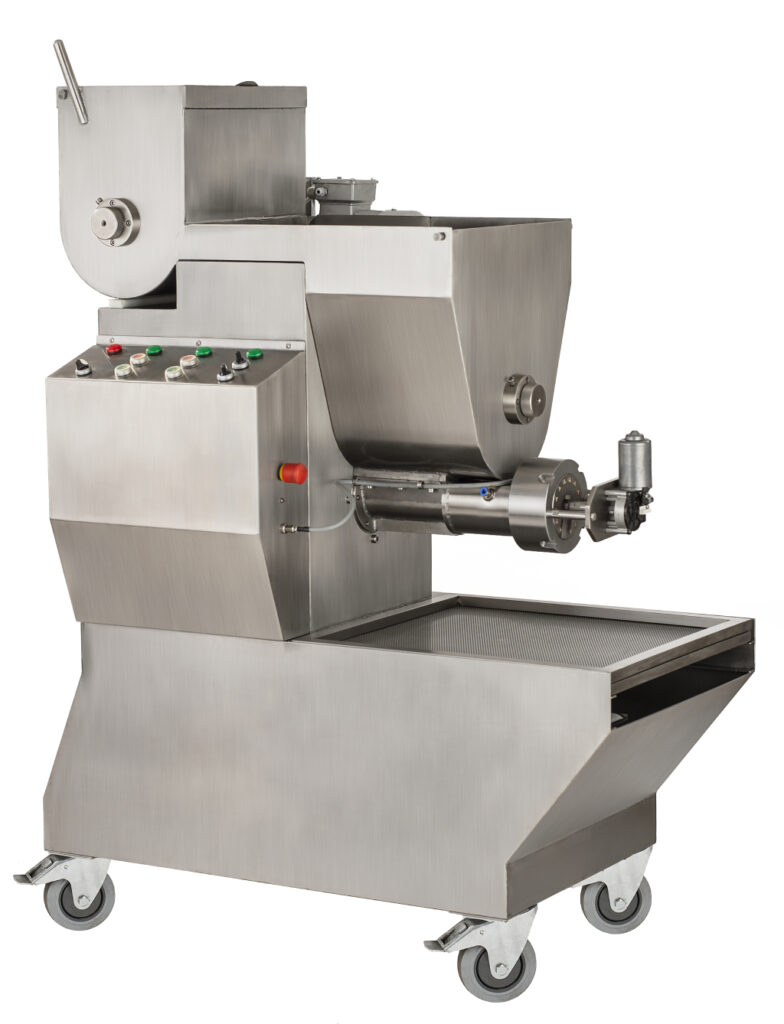

The machine consists of a body containing drive elements, a dough mixer, a kneading trough combined with a pressing unit and a mould.

Our standard offer includes moulds for several basic pasta shapes.   Depending on the needs, we are able to make various moulds on a special order.

Principle of operation

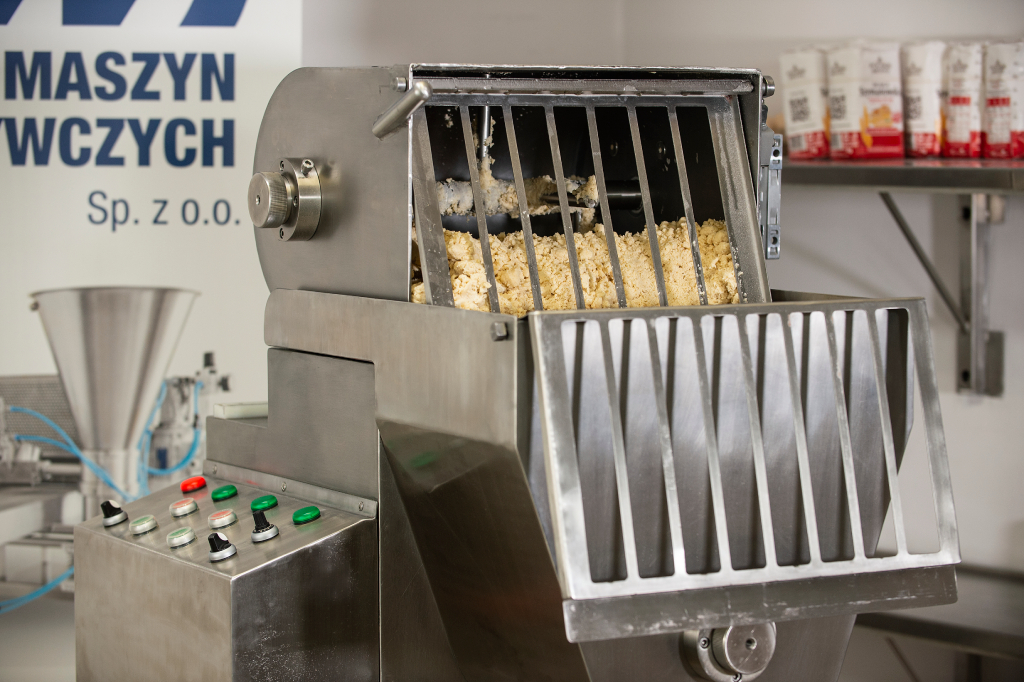

The ingredients for the dough are mixed by the upper kneading trough, and then the mixed dough is poured into the lower kneading trough with a worm.

The lower kneading trough’s worm presses the mass through the moulds, and the knife cuts the noodles behind the mould to the desired length.

The noodles are pre-dried in the sieves below and prepared for further drying.

TECHNICAL DATA:

• Output: about 80 kg/h
• Kneading trough capacity: 20 litres
• Kneading-forcing trough capacity: 20 litres
• Mixing drive power: 0.75kW
• Pumping drive power: 2.2kW
• Power Supply: 3x 400 V, 3P+N+PE; 50 Hz – can be adjusted to the voltage in the buyer’s country
• Dimensions (cm) (length/width/height): 130/ 80 / 170
• Weight: 300 kg
